PM Unit – Compact. Fast. Precise.

Polygon Scanner: up to 10,000 rpm, 20 mm free aperture, versatile use

Compact Design

~1 kg, 110×90×85 mm

High Speed

Up to 10,000 rpm for high scan rates

Large Aperture

Free aperture up to 20 mm

Industry-Grade

12–36 V DC, robust signal separation

Flexible Optics

Coatings UV / VIS / NIR / IR on request

Versatile Interfaces

PWM, Speed-FB, Fault, USB

Status Feedback

LEDs: Power / RPM / Error / Temp

Optional: Encoder

For high-precision applications

Operating Conditions

18–30 °C, 20–90 % RH

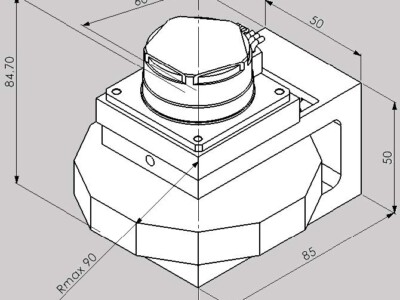

PM_unit_Bild_2

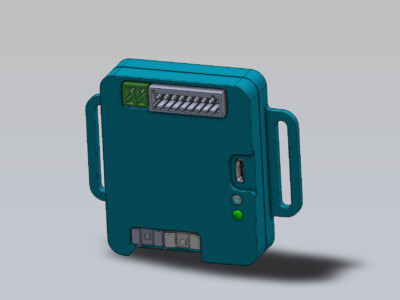

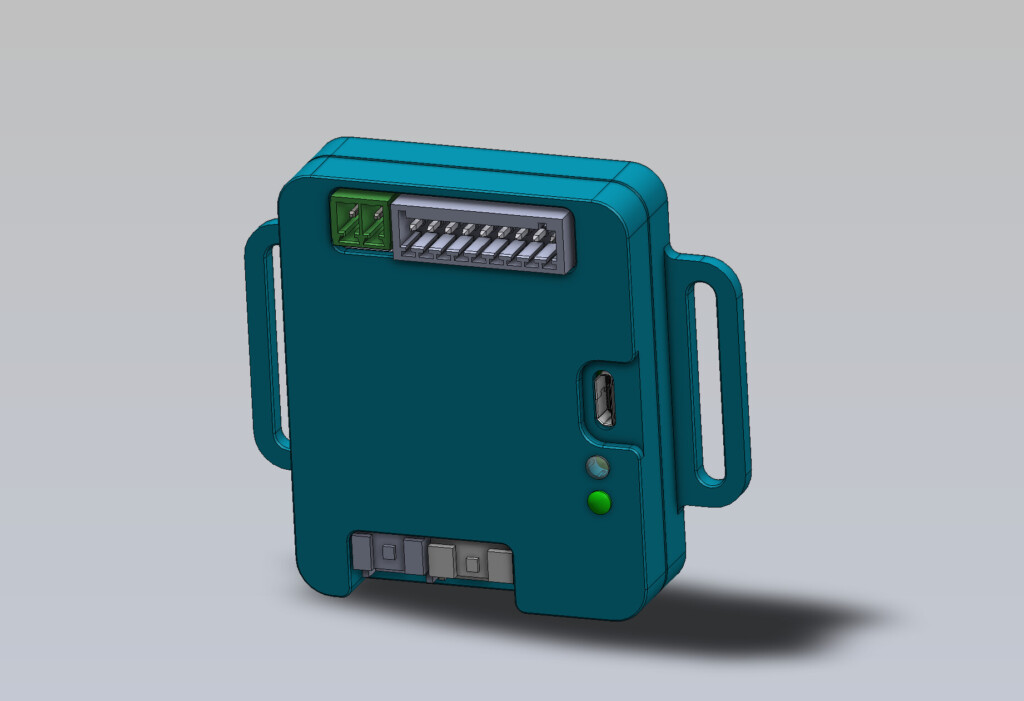

BLDC-Driver-Pig-3

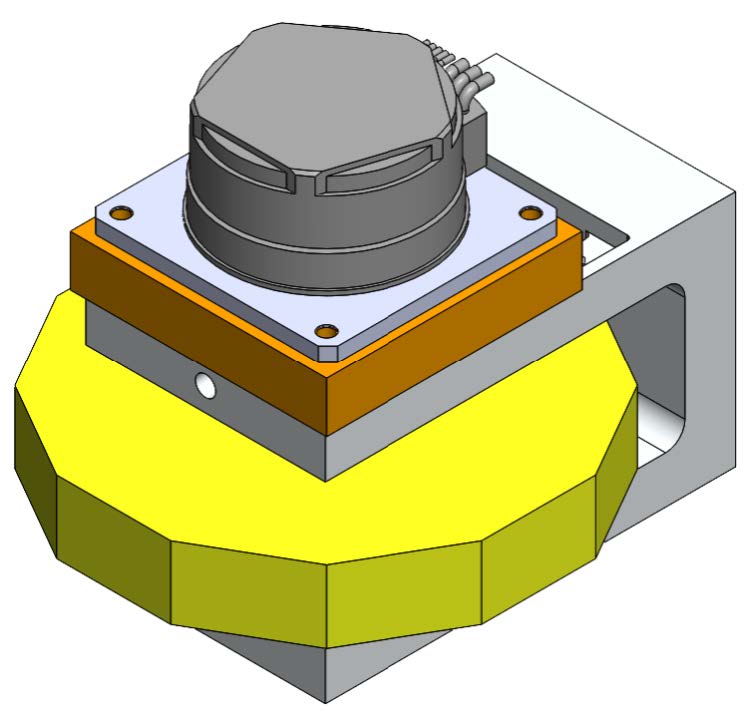

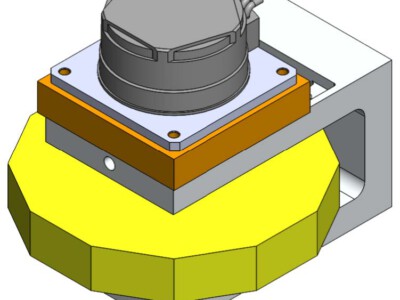

PM_unit_Bild_1

Options & Extensions

High-Precision Encoder

For applications with the highest positioning and synchronization requirements.

Coating Options

Coatings for UV, VIS, NIR and IR on request – optimal reflection/absorption characteristics.

Customized Mounting

Special adapters and custom mounting variants for integrators.

USB Monitoring

Optional monitoring functions and firmware access via USB.

Sync Interface

Synchronization with external axes or additional scanners.

PM Unit – Base & Options Compared

FeaturePM Unit BasePM Unit with Options
Speed (rpm)5,000 (10,000 on request)5,000 / 10,000 (on request) + Encoder support
Free Apertureup to 20 mmup to 20 mm (Coatings: UV/VIS/NIR/IR)
Dimensions (L×W×H)110 × 90 × 85 mmsame, optional mounting accessories
Weightapprox. 1 kgapprox. 1 kg
Supply12–36 V DC, max. 100 Wsame + Encoder/USB options
InterfacesPWM (Speed), Speed-FB, nFAULT, ENA, USB+ Encoder, extended USB monitoring

Your Benefits

  • High scan rates with compact design
  • Large free aperture for flexible optics integration
  • Robust control inputs (optocoupler-isolated)
  • Status display via LEDs or optional UIs
  • Multiple interfaces – easy integration
  • Optional encoders for constant rotation and homogeneous processing

Technical Details

  • Dimensions: 110 × 90 × 85 mm
  • Weight: approx. 1 kg
  • Speed: 5,000 / 10,000 rpm (on request)
  • Free aperture: up to 20 mm
  • Supply: 12–36 V DC, max. 100 W
  • Operating temperature: +18 … +30 °C
  • Relative humidity: 20 … 90 %
  • Interfaces: PWM (FRQ), ENA, MODE, Speed-FB, nFAULT, USB

Optics & Mounting

Mechanical mounting: bottom side, 4× M5 threads. Optional mounting adapters and custom solutions available on request. Coatings (UV, VIS, NIR, IR) available as needed.

Optics Catalog

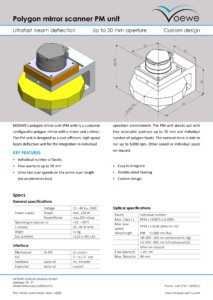

PM Unit Datasheet

To Datasheet
