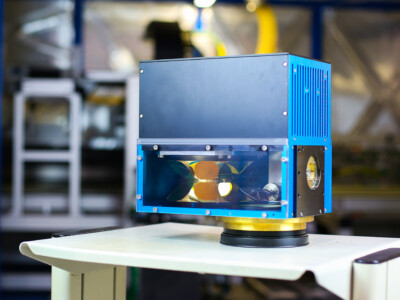

PM 30 – One device, endless possibilities
Our previous models PM 100, PM 300 and PM 600 are now combined in the PM 30.
Surface treatment
Modification
Cleaning
Cutting
Marking
Microstructuring
Drilling
Perforating
2.5D Engraving
LIFT
PM 30 – Basic & Options Compared
| Feature | PM 30 Basic | PM 30 with Options |
|---|---|---|
| Power Range | < 1 kW | High Power Mode: > 1 kW |
| Wavelengths | Standard (NIR) | Option: UV / VIS |
| Processing | Standard applications (surface, cutting, cleaning) | Option: Engraving Module (2.5D, fine structures) |
| Process Control | Basic software | Option: Real-Time Shifter Option: Sync Module |
| Applications | Universal | High-end, highly dynamic processes |
Your Benefits
- Two-dimensional beam deflection enables stand-alone operation or integration into production lines
- Patented low-distortion double polygon mirror
- Large free aperture of 30 mm
- Multiple digital and analog I/O ports, Ethernet
- High laser power up to 5 kW cw
- Ultra-fast scan speeds across the entire scan field
- Synchronization of two scanners to one laser source (optional)
Optics
Software
- Parameter, bitmap and vector graphics mode
- 8-bit grayscale processing, 2.5D engraving
- 3D real-time slicer (STL files)
- Synchronization of scanners and external axes
Datasheet PM 30
What Our Customers Say
I am very satisfied with the high robustness of PM-300, and especially with the strong and friendly support for our process.
Extremely fast deflection and precision of the polygon scanner compared to other scanners is remarkable. Excellent customer service, quick help and so far very satisfied.
Very powerful product, active and friendly support, detailed and well-made product manual.
