PM 10
You need a higher throughput in your laser process
You cannot use your maximum available laser power
You are still using slow galvo scanners
You are looking for a solution to replace your existing scanner
PM 10 Mini – Maximum precision in the smallest space
A cost-effective entry-level model for low and medium laser power
Surface treatment
Modification
Cleaning
Cutting
Marking
Microstructuring
Drilling
Perforating
2.5D Engraving
LIFT
Product overview

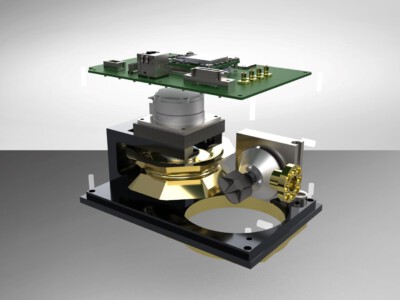

- Patented low distortion double polygon mirror
- Free aperture of 10 mm
- 50 – 70 % duty cycle
- Ultra-fast scan speeds on the entire scanning field
(no acceleration loss) - Full digital, FPGA on-board data processing
- Bitmaps or line processing
- Real-time laser switching for highest accuracy
Options and variants
Optics
- 8 or 12 facets with ± 30° and ±15° scan angle
- Utilize standard and customized f-theta lenses
- Easy exchange with adapter ring
Hardware
- High speed laser trigger up to 100 MHz
- Position related pulse trigger
Software
- Parameter or bitmap mode
- 32-bit greyscale processing, engraving 2.5D
- Synchronization of multiple scanners
- Real-time on the fly processing with external axis
Your advantages
- Two-dimensional beam deflection allows standalone utilization or machine integration (axis, rollto-roll
- Synchronization of two scanners on a single laser source (optional)
- Applications: Laser marking, micro structuring,
Surface cleaning, Drilling, Cutting, spot welding,
Engraving (2.5D) and much more
Data sheet PM Mini
What our clients say
★★★★★
I’m very satisfied with high robustness of PM-300, and in specially, strong and kind custom support for our process.
I’m very satisfied with high robustness of PM-300, and in specially, strong and kind custom support for our process.
★★★★★
Extremely fast deflection and precision of the polygon scanner compared to other scaners is remarkable. Very good customer support, quick assistance and satisfied with everything so far.
Extremely fast deflection and precision of the polygon scanner compared to other scaners is remarkable. Very good customer support, quick assistance and satisfied with everything so far.
MOEWE solution completely new markets for laser machining can be opened up and will be an innovation leader frawing global attentionin the hig-end filed.
★★★★★
Very good performance product, active & kind supports, detailed and well-made manual of product.
Very good performance product, active & kind supports, detailed and well-made manual of product.

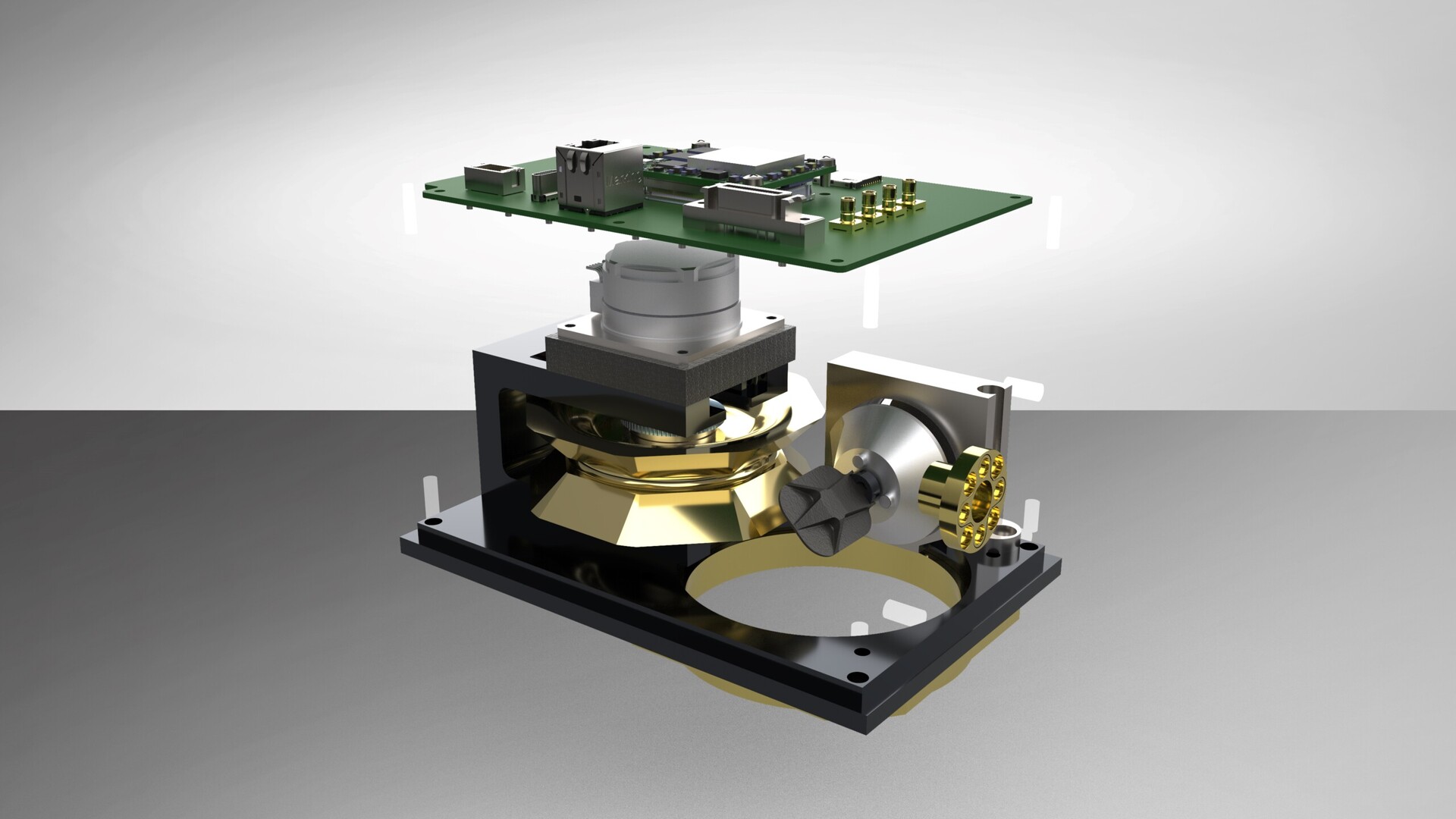

Patented design and real-time data processing

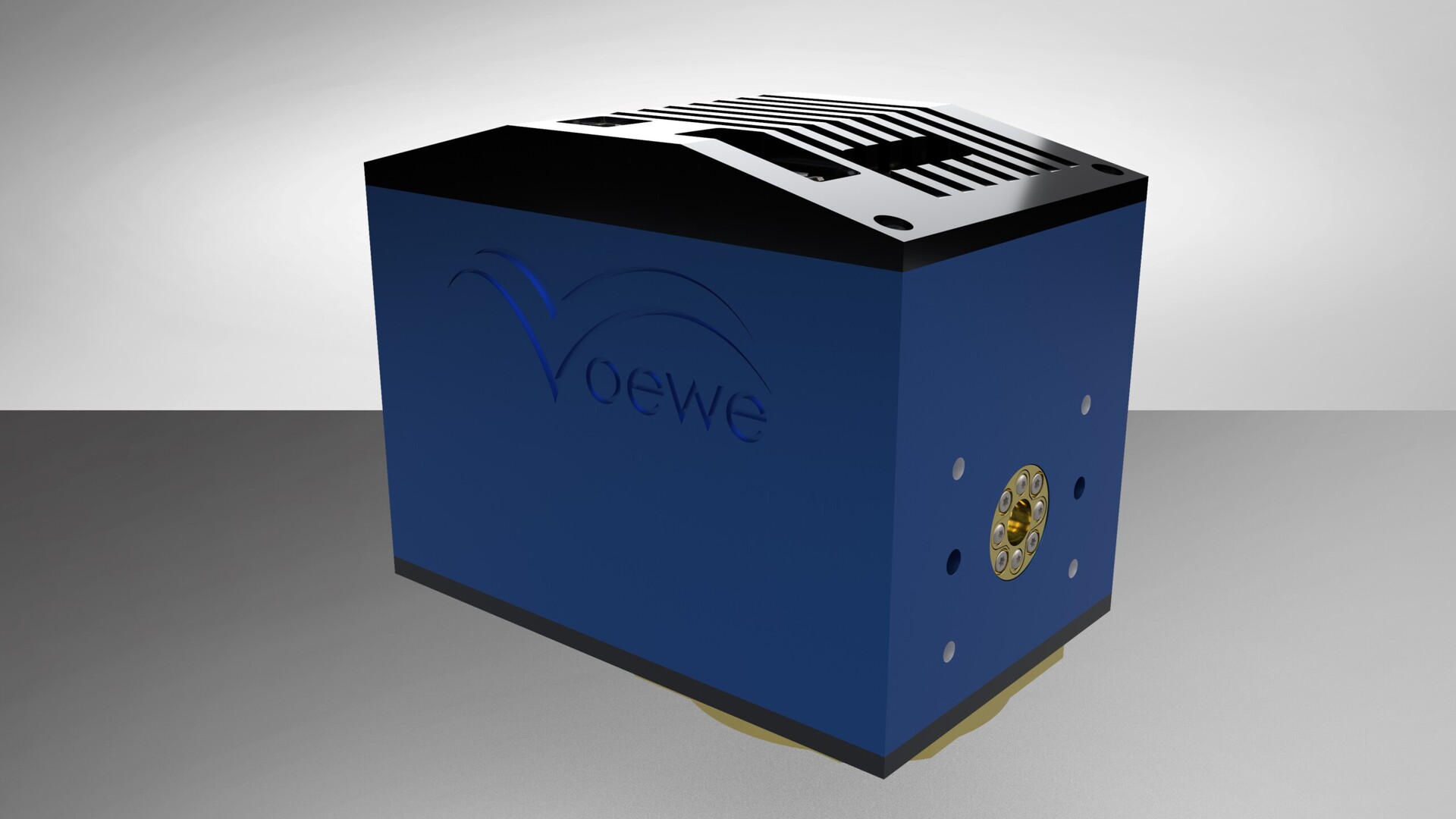

The PM 10 Mini is the most innovative compact scanning system on the market. Thanks to its integrated control and flexible processing modes, it is ideal for applications such as marking, microstructuring and LIFT. With an aperture of 10 mm and its real-time data processing, the PM 10 Mini offers maximum precision for your laser process.
Compact design for optimum results.
The PM 10 Mini is the most compact and versatile scanner system in its class. With integrated control, flexible processing regimes and universal applicability, it offers a powerful solution for precise material processing in the smallest of spaces.
Incredibly fast. Scanning speed >1,000 m/s possible.
The deflection speed of the PM 10 Mini is approx. 30 times greater than that of galvo scanners. With a focal length of 1920 mm, our MOEWE Polygon Scanner System achieves a speed of more than 4,000 m/s at a line frequency of 1,300 Hz. The benefits of a polygon scanner are unsurpassed, especially for full-surface raster data processing or continuous surface irradiation.
